Hacking¶

Developer guide to the codebase

Cache directory structure¶

$ cd ~/.local/share/koneko
$ tree -d  # (Edited: .koneko and history are files not directories)
.
├── cache                         # ├── KONEKODIR
│   ├── 2232374                   # │   ├── Artist pixiv ID                             ├── Mode 1 and 2
│   │   ├── 1                     # │   │   ├── Page 1                                  │   ├── Mode 1
│   │   ├── 2                     # │   │   ├── Page 2                                  │   ├── Mode 1
│   │   └── individual            # │   │   └── Posts with a single image               │   └── Mode 2
│   │       └── 76695217          # │   │       └── ID of posts with multiple images    │       ├── Mode 2
│   │           └── illustrelated # │   │       └── Related images mode                 │       └── Mode 1.5
│   │               └── 1         # │   │           └── Page 1                          │           └── Mode 1.5

│   ├── following                 # │   ├── Following users mode                        ├── Mode 3
│   │   └── *your_id*             # │   │   └── Your pixiv ID                           │
│   │       ├── 1                 # │   │       ├── Page 1                              │
│   │       │   └── .koneko       # │   │       │   └── Stores number of artists info   │
│   │       └── 2                 # │   │       └── Page 2                              │
│   │           └── .koneko       # │   │           └── Stores number of artists info   │

│   ├── illustfollow              # │   ├── Illust follow mode                          ├── Mode 5
│   │   ├── 1                     # │   │   ├── Page 1                                  │
│   │   └── 2                     # │   │   └── Page 2                                  │

│   ├── recommended               # │   ├── Illust recommended mode                     ├── Mode 6
│   │   └── 1                     # │   │   └── Page 1

│   ├── search                    # │   ├── Search users mode                           ├── Mode 4
│   │   └── gomzi                 # │   │   └── Search string
│   │       └── 1                 # │   │       └── Page 1

│   ├── history                   # │   ├── History file, for frequent "mode"

│   ├── testgallery               # │   ├── (Internal/debugging use)
│   └── testuser                  # │   └── (Internal/debugging use)
└── pics                          # └── Images for main and info screen

UML diagrams¶

Flowchart of modes and their connections¶

Flowchart as a finite state machine¶

Simplified UML diagram of the classes¶

api.py¶

download.py¶

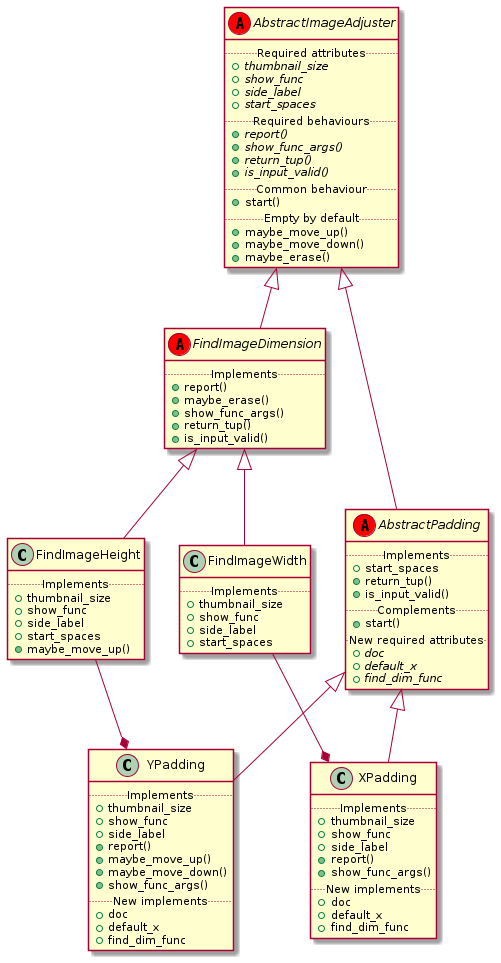

Image Adjuster in assistants.py¶

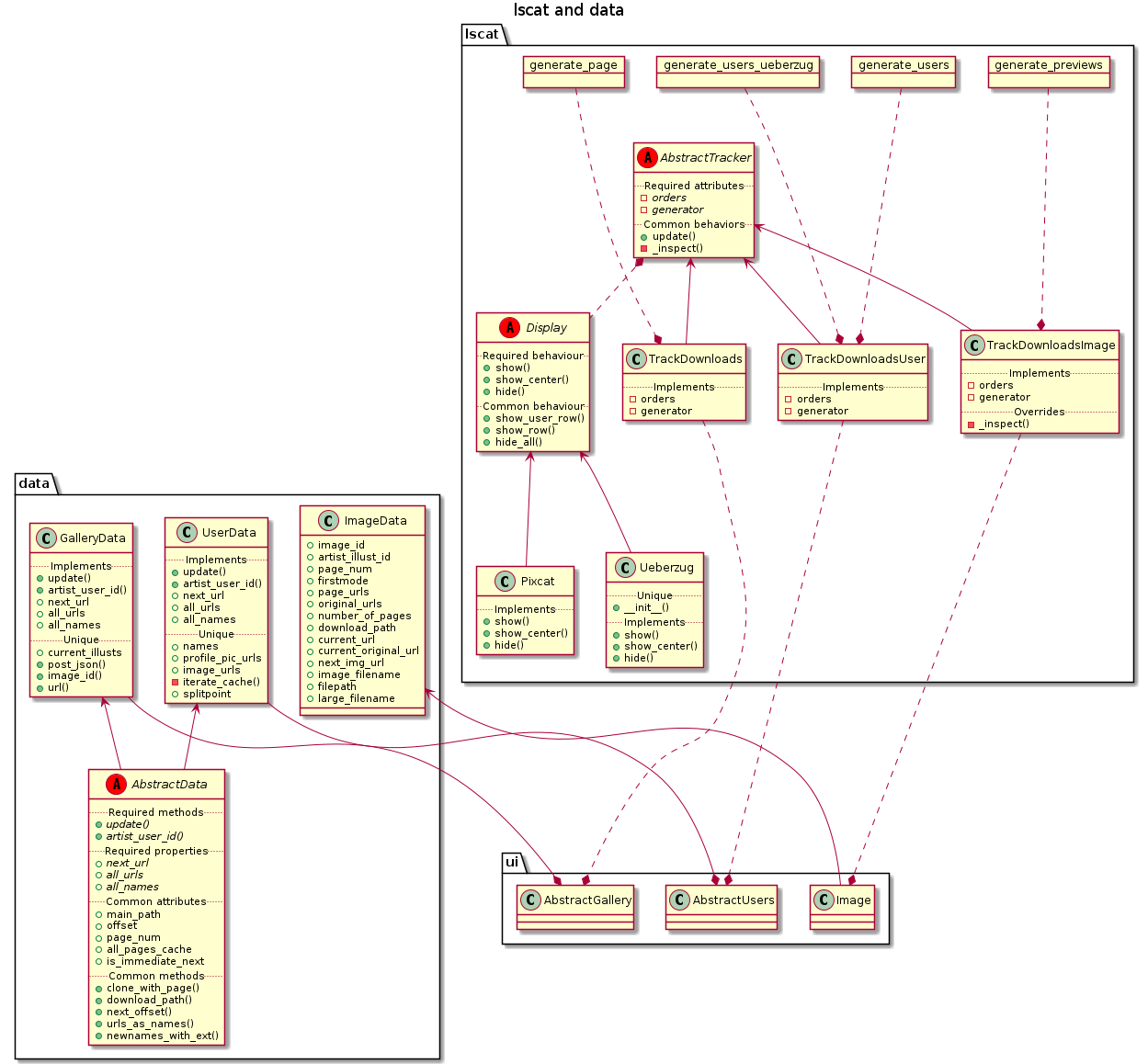

lscat.py and data.py¶

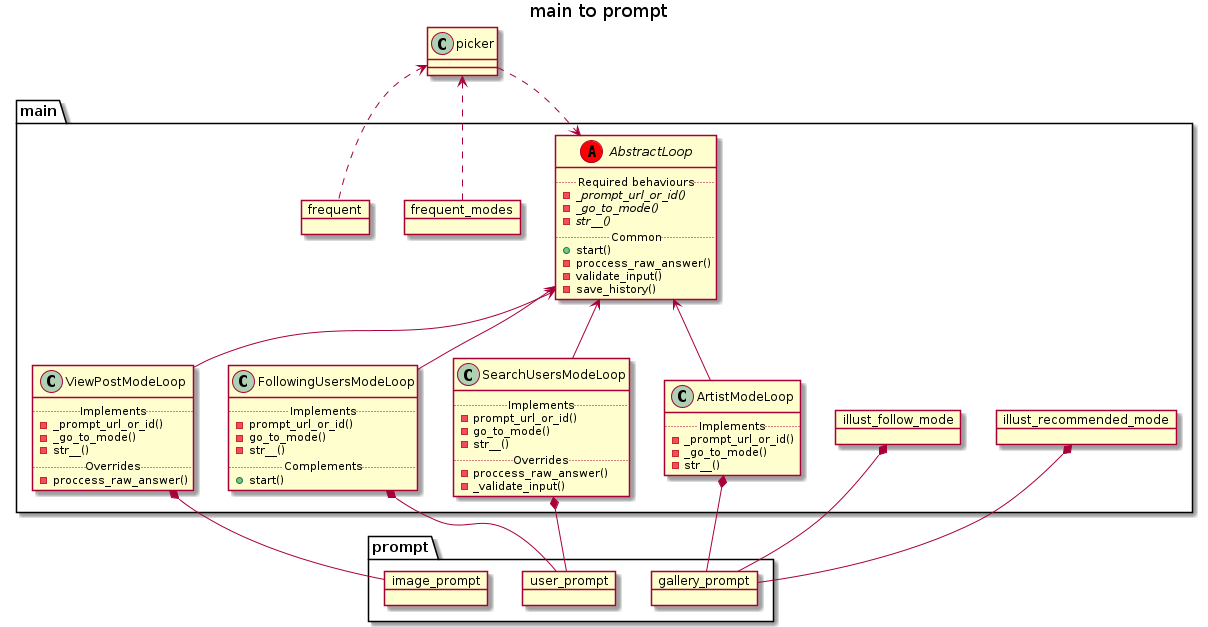

main.py to prompt.py¶

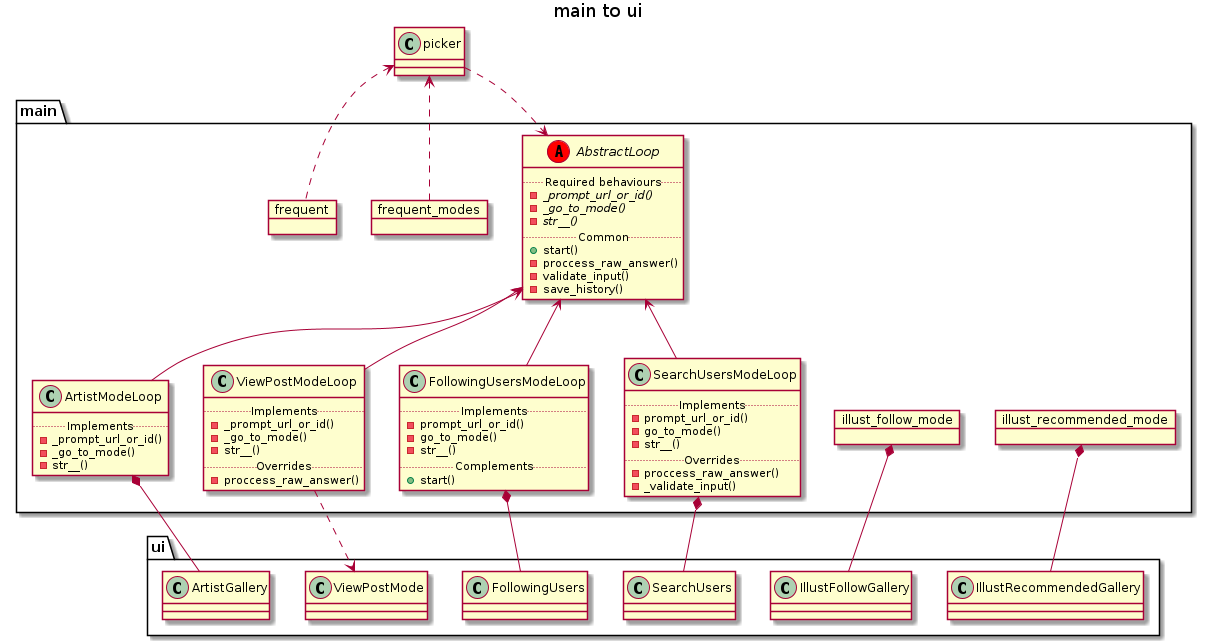

main.py to ui.py¶

ui.py¶

UI class methods¶

Actor-ish models of ui classes¶

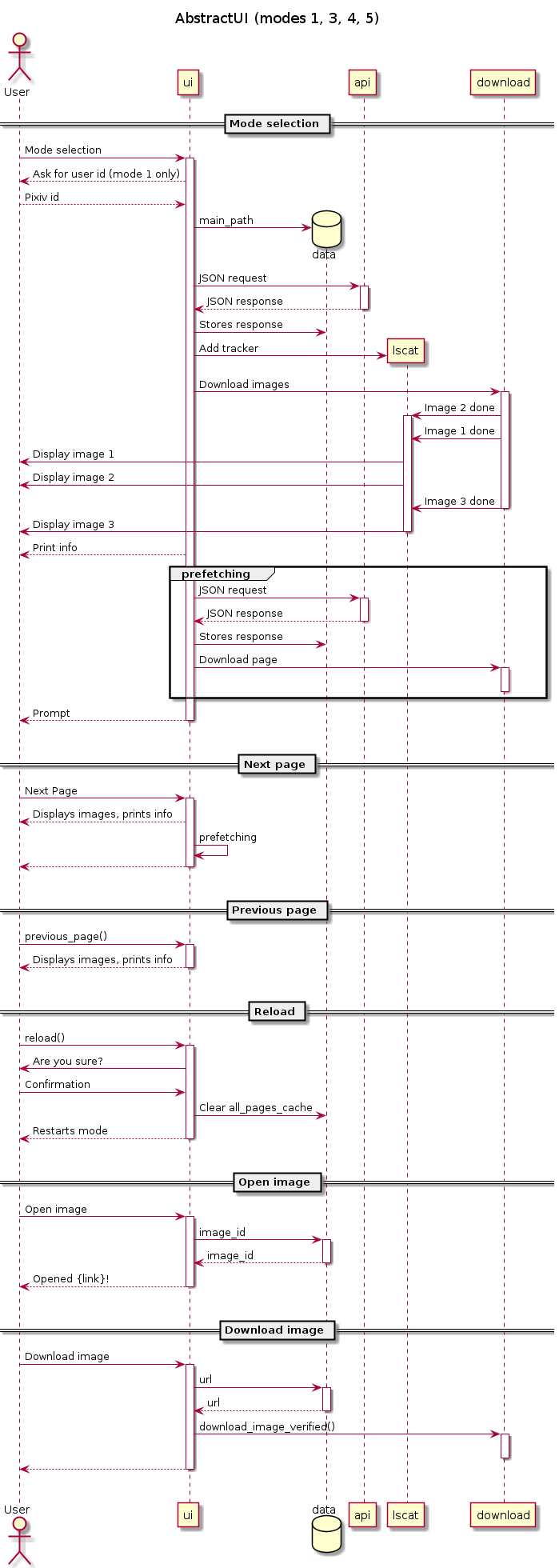

ui.AbstractUI¶

ui.Gallery classes (extending AbstractUI)¶

ui.User classes (extending AbstractUI)¶

ui.Image¶

Dependencies¶

There are two dependencies that aren’t necessary: returns and placeholder (both on the right edge). Code can always be rewritten to remove those two dependencies. That said, they don’t introduce their own dependency tree, so only a total of three dependencies are added. Compared to the core dependencies (pixivpy, pixcat, and blessed), that’s insignificant.

$ pipdeptree -v
2.0.0b1
$ pipdeptree --graph-output png -p koneko > dependencies.png
